Linear Series

Ambiance® IW-60

  • Built-in

At just 5-5/8” in depth, the Ambiance® In-Wall electric fireplace is a practical choice for new construction projects and renovations alike. As a result, it is giving you the ability to install your fireplace with your choice of finishing material built right to the glass for a true ‘clean-face’ design or using the provided black metal surround trim. Your choice, your design!

  • 4 800 BTU
  • 60 14" W x 5 58" D x 15 58" H
  • Approved for Indoor and Outdoor use
Front Color Options
  • Black

Features

Highlights

Ecotel Remote Control

Easy On/off Manual operation Thermostatic Control easy to setup 6-speed operation of the convection fan

Heat Activated Convection Fan

Automatically activates when heat is detected. Efficient way to move warm air across the room where the fireplace sits.

Log & Glass Media Set

Beautifully finished log set with clear glass and glass chunks. Have it reflect your mood by changing ambient colors with the remote control.

Heat Power
4 800 BTU
Combustible Type
Electric
Ambiance® Signature
Premium Quality Construction
Warranty
Limited 2 Years Warranty

Overview

  • Innovative LED lighting for unique flame design and colors.
  • Very low cost to operate.
  • Enjoy the “flame” even in summer!
  • Certified and safety tested by top agencies in North America.
  • Sold and installed by the very best network of fireplace stores in the country.
  • Manufactured and engineered by Industry leaders!

Specifications

Power
Heater on High4800 BTU / 1500 WattsHeater on Low2400 BTU / 750 WattsHeater Off22 WattsRotor Motor1 to 5 Watts
Energy
Volts120 VoltsAmps12.5 Amps
Connection
ThermostatThermostat ReadyHard WireHard Wire ReadyPlugLeft Side, 72 12" Cord
Approximate Heating Area
Up to 500 sq. ft.
Dimensions
GLASS58 34" W x 13 14" H (778 sq in)In-Wall60 14" W x 5 58" D x 15 58" HWith Surround62 12" W x 6 14" D x 17 18" HMin. Wall Opening61 14" W x 6" D x 16" H
Flame Presentation
PresentationFIRE & ICE FlameFlames2 Flame setsAmbient Lighting13 ColorsLampsLED
Blower
TypeHeat ActivatedCFM100SpeedSingle Speed
Indoor and Outdoor Use
Indoor UseYesOutdoor UseYes

Videos

Enjoy The Ambiance®

Options

Customize Your Fireplace

Fronts Options

Matte Black Steel Surround Trim (included)

Color

Black

Log Media Kits

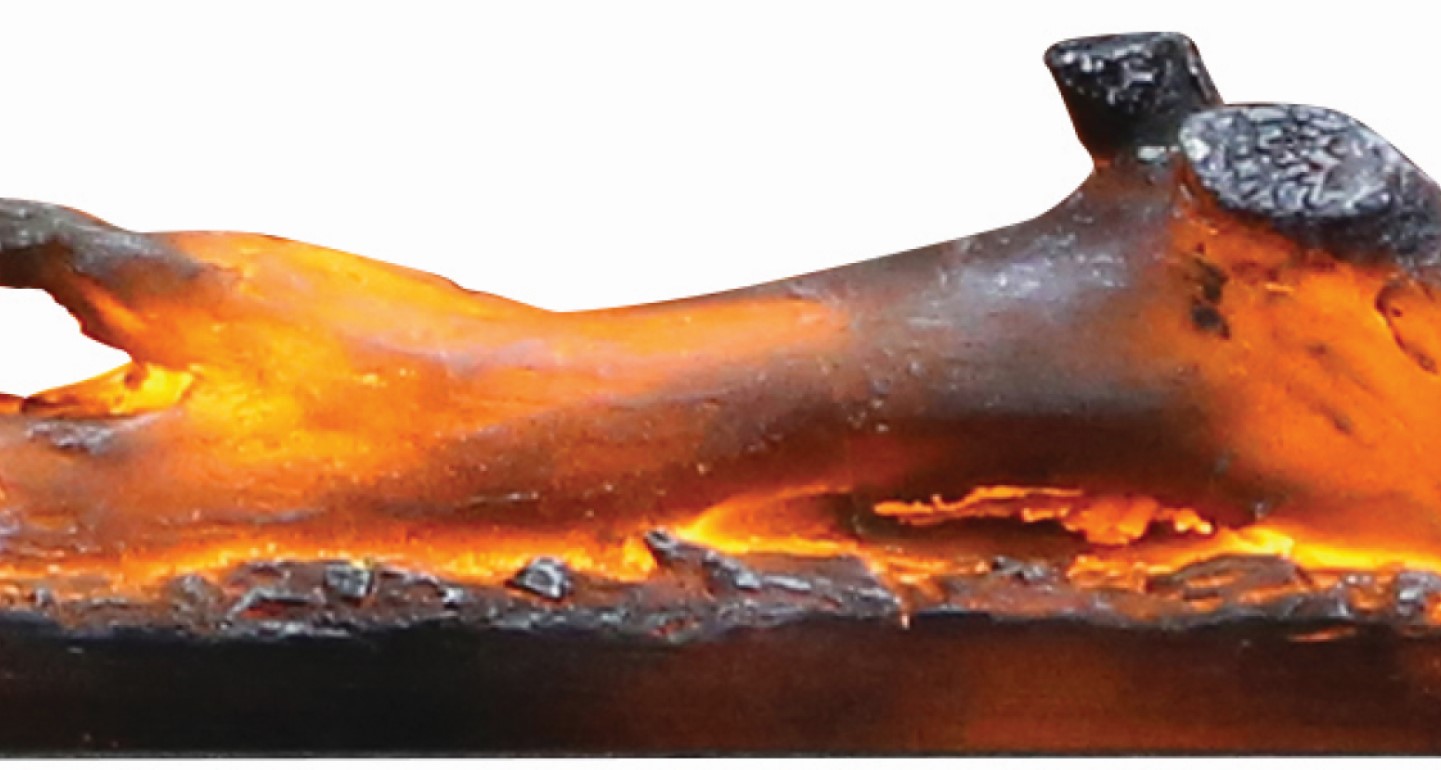

Log Set

Included in the box. Beautifully finished log set that glow with the lighting effects the flame produces for a warm feeling.

Glass Media Set

Included in the box. Creative glass media with large chunks mixed with beads to create a contemporary flame pattern over ice.
