LUXUS® Electric Series
LUXUS® e40
- Built-in

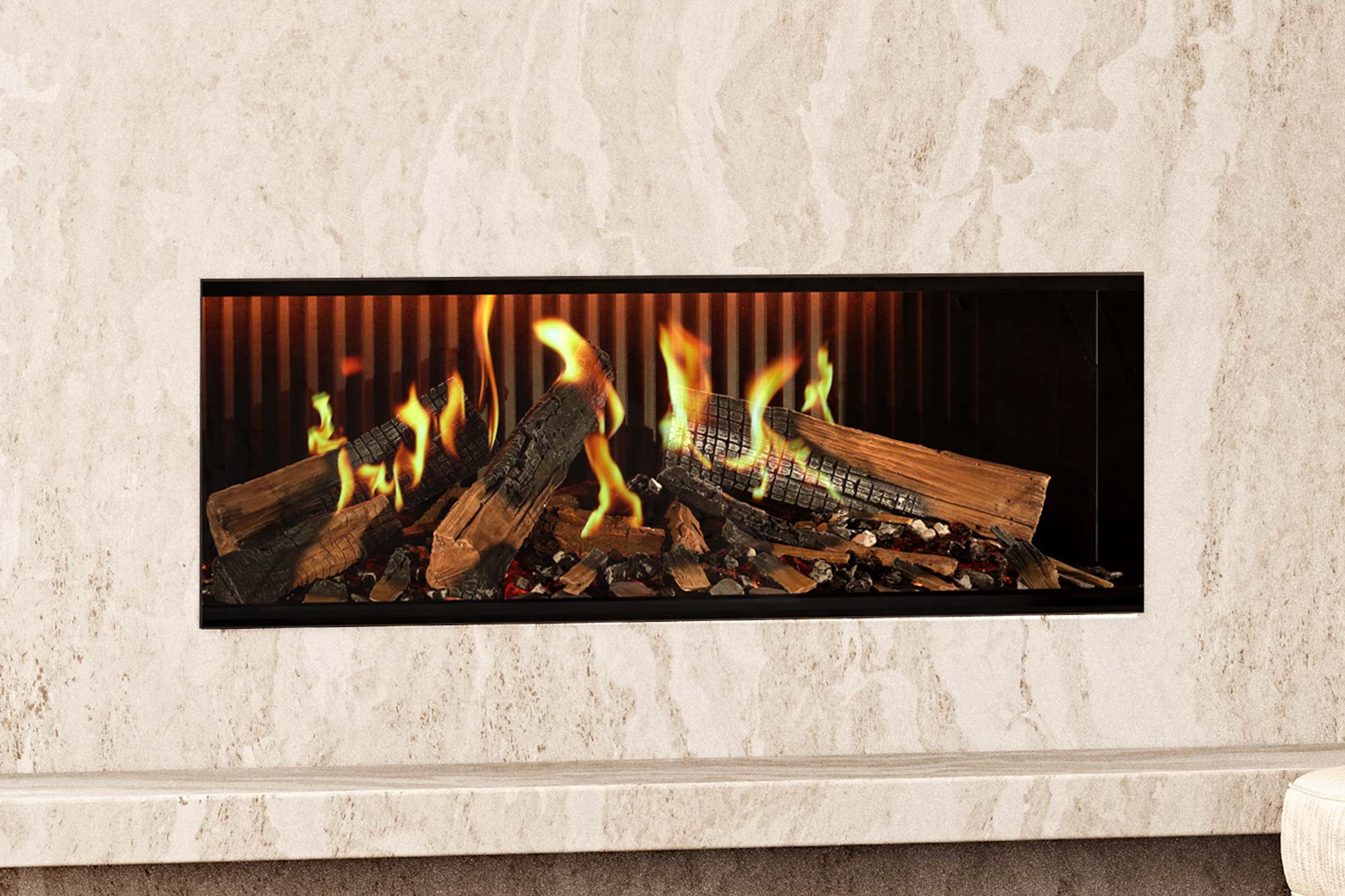

The LUXUS® e40 Luxury Built-in Electric Fireplace is a 40-inch wide electric fireplace engineered for architectural precision and installation flexibility. Built in the Netherlands, this electric platform delivers the most advanced flame technology in a size well suited for residential applications where space efficiency and clean integration are essential.

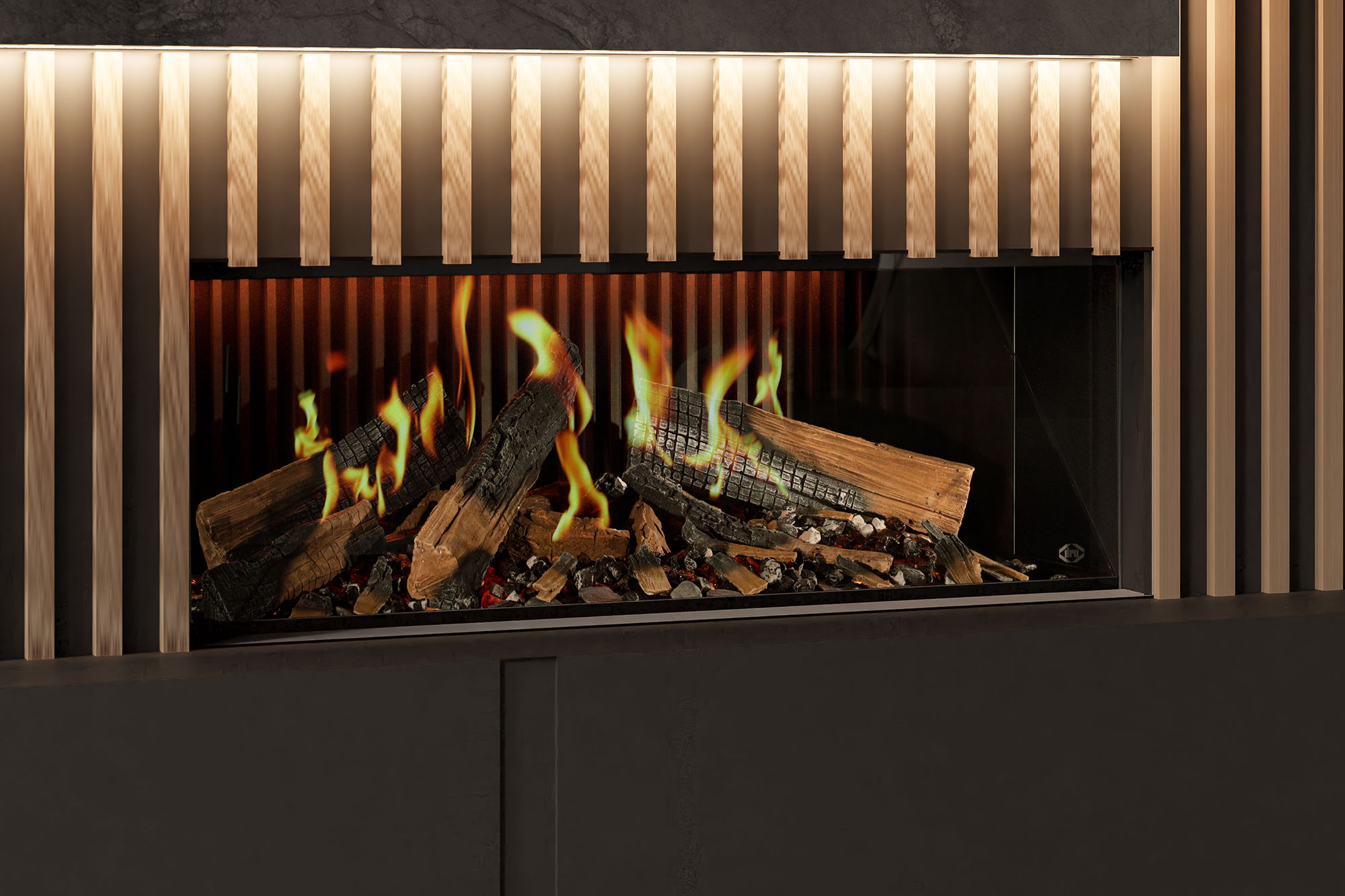

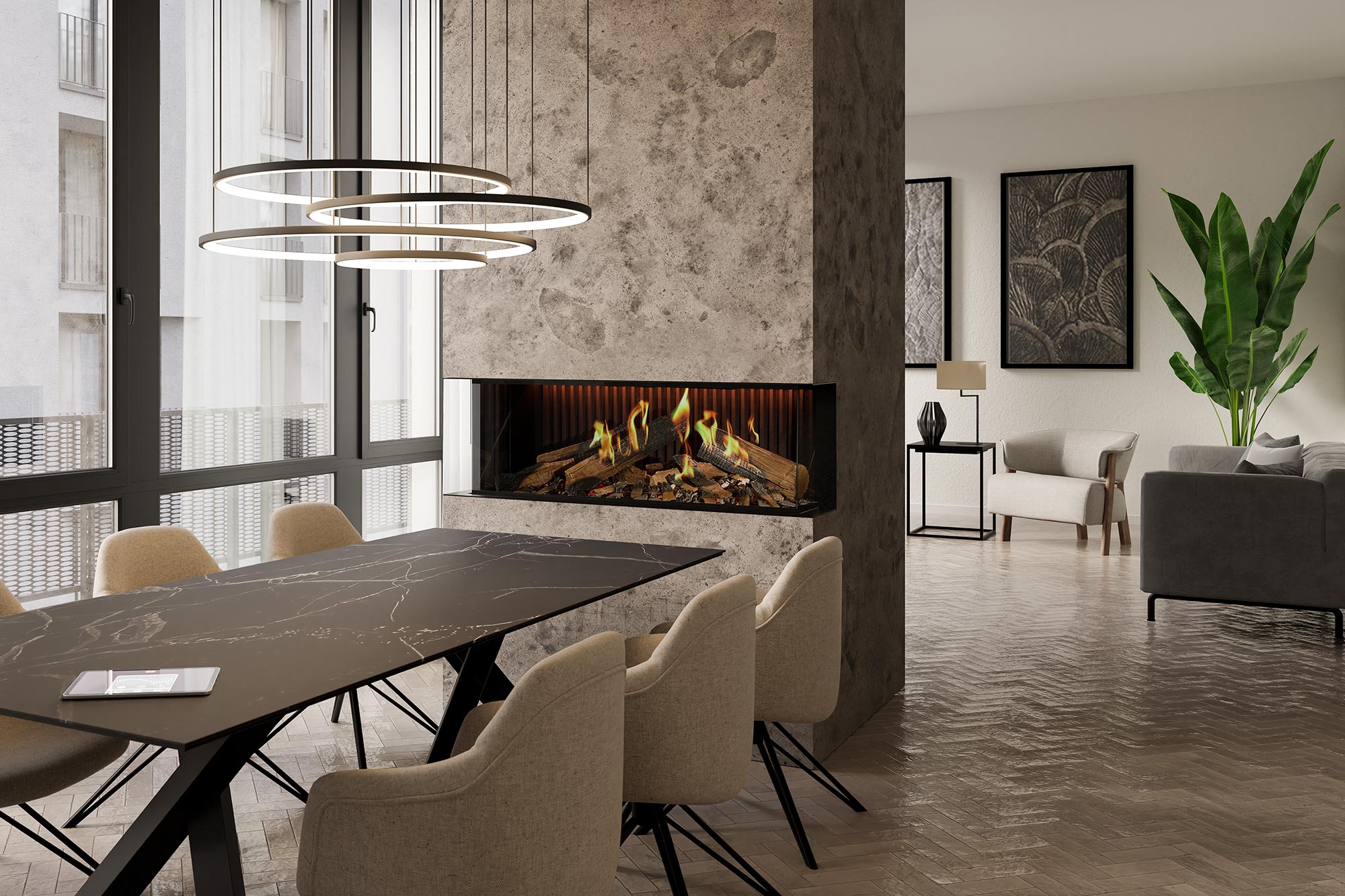

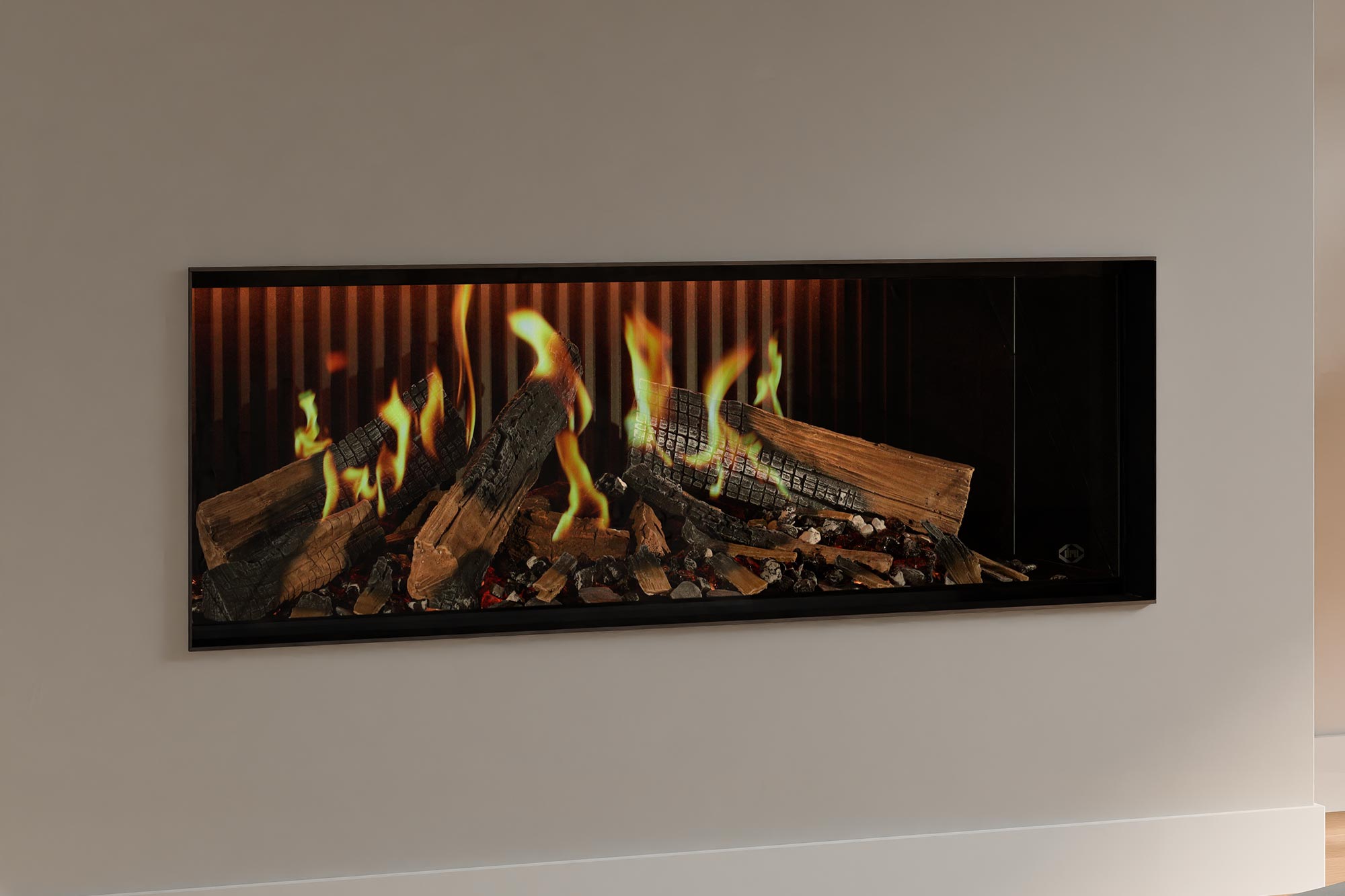

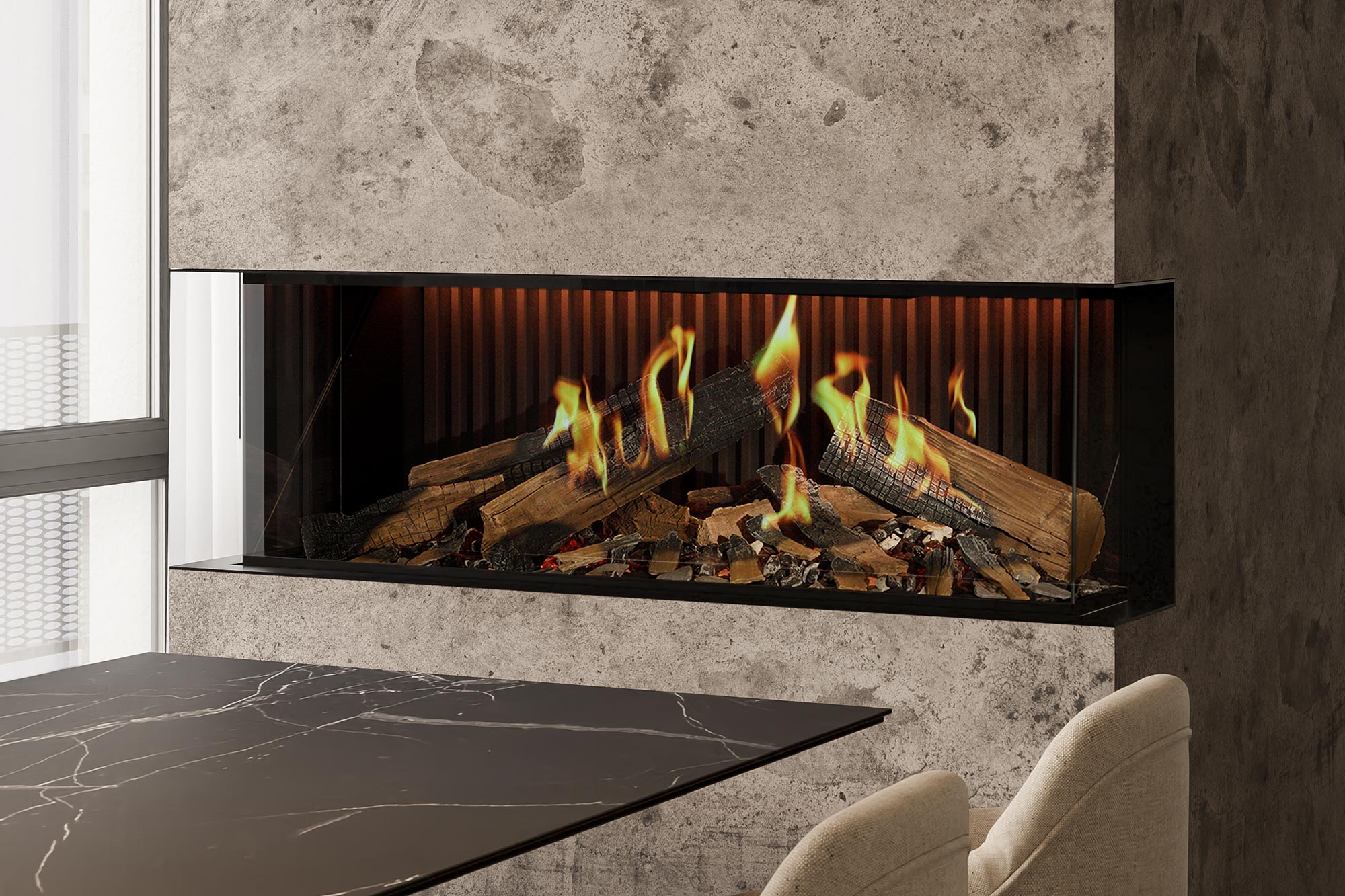

The e40 is available with a single-sided front glass or a bay (3-sided) glass configuration, allowing seamless integration into walls, partitions, or feature installations. A patented anti-reflection glass coating eliminates flame reflection on the front panel, ensuring maximum flame depth and visual clarity under all lighting conditions.
Ultra-realistic flame effects, a multi-level ember bed, and synchronized realistic wood-fire sound create an authentic fire experience. Efficient electric heating provides supplemental warmth, while intuitive controls allow precise adjustment of flame, heat, sound, and ambiance. The LUXUS® e40 is designed for low-maintenance operation and consistent performance in modern living environments.
LUXUS® e-Series™ electric fireplaces combine European engineering, patented visual technology, and flexible configurations—engineered for architects, designers, and discerning homeowners.
4,265 BTU
3915⁄16" W x 211⁄4" D x 311⁄2" H
120 V
Specifications
Power | Heater on High4,265 BTU / 1,250 Watts | Heater on Low2,133 BTU / 625 Watts | Standby Mode / Speaker2.14 Watts / 15 Watts | Heater Off100 Watts | |
|---|---|---|---|---|---|
Energy | Volts120 V | Amps11.3 Amps | |||
Connection | Thermostat / Hard WireThermostat and Hard Wire Ready | RemoteThermostatic Remote | PlugBack, Top Centre, (20" Long) | ||
Approximate Heating Area | Up to 400 Sq. Ft. | ||||
Dimensions Single Sided Version | Overall3915⁄16" W x 211⁄4" D x 311⁄2" H | Min. Wall Opening401⁄8" W x 201⁄4" D x 321⁄8" H | |||
Dimensions Corner Version | Overall425⁄8" W x 211⁄4" D x 311⁄2" H | Min. Wall Opening415⁄8" W x 201⁄4" D x 321⁄8" H | |||
Dimensions Bay Version | Overall451⁄4" W x 211⁄4" D x 311⁄2" H | Min. Wall Opening431⁄16" W x 201⁄4" D x 321⁄8" H | |||
Glass Single Sided Version | Front Pane393⁄8" W x 123⁄4" H | Total Glass Surface502 Sq. In. | |||
Glass Corner Version | Front Pane393⁄8" W x 123⁄4" H | 1 Side Pane913⁄16" W x 123⁄4" H (125 Sq. In.) | Total Glass Surface627 Sq. In. | ||
Glass Bay Version | Front Pane393⁄8" W x 123⁄4" H | 2 Side Panes913⁄16" W x 123⁄4" H (125 Sq. In.) | Total Glass Surface752 Sq. In. | ||
Flame Presentation | Flame Patern 1Amber Rise | Flame Patern 2Amber sparks | Flame Patern 3Amber Dusk | Flame Patern 4Scarlet Rise | |
Blower | CFM50 CFM |
